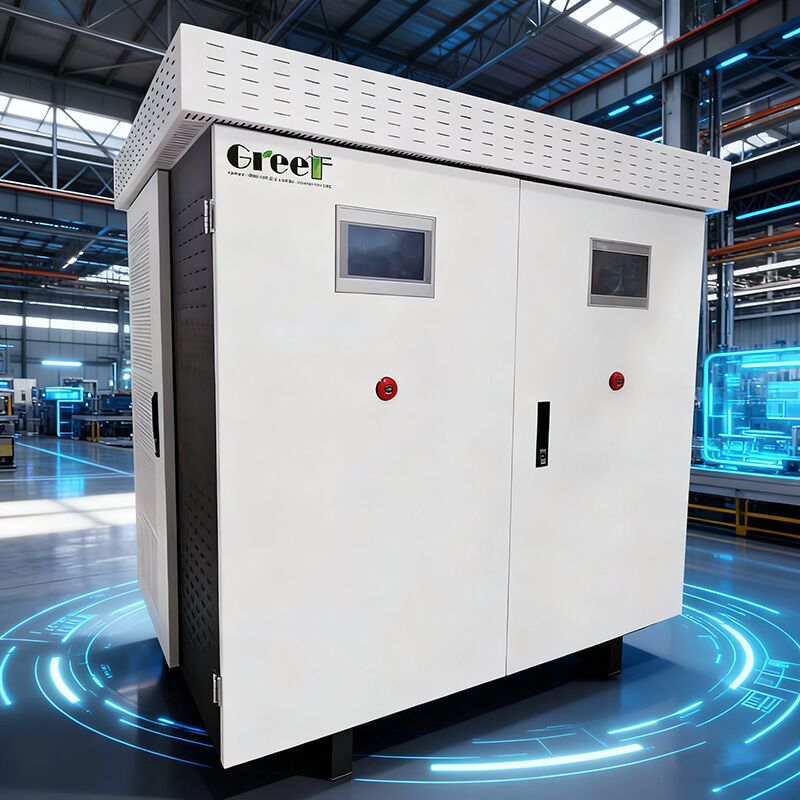

Name: AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Casa. > prodotti > Sul regolatore di griglia >

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

50Hz/60Hz Rated Grid Frequency On Grid Controller

-40 to 60 Degrees Environment Temperature Wind Controller

100 kW Rated Power AC Generator-Battery Hybrid Converter

Marca:

Greef

Certificazione:

Model Number:

AC PCS

Contattaci

Chiedi un preventivo

AC Generator-Battery Hybrid Converter On Grid Controller with 50Hz/60Hz Rated Grid Frequency and -40 to 60 Degrees Environment Temperature for 100 kW Rated Power

Dettagli del prodotto

Frequenza nominale della griglia ((Hz):

50HZ/60HZ

Temperatura dell'ambiente:

-40 ~ 60

Tensione nominale (VAC):

≥ 320

Corrente nominale di carica e scarica (A):

144

Modalità di comunicazione:

Ethemet, RS485, WIFI

Topologia:

Retificatore AC-DC, Boost buck DC-DC, Invertitore DC-AC.EMS

Voltaggio nominale della batteria (Vcc):

400

Tensione nominale ottimale del generatore (Vac):

450

Termini di pagamento e di spedizione

Minimum Order Quantity

1Set

Prezzo

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Termini di pagamento

T/T, Western Union, MoneyGram, L/C

Supply Ability

PRODOTTI RELATIVI

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Ottieni il miglior prezzo

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Ottieni il miglior prezzo

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Ottieni il miglior prezzo

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Ottieni il miglior prezzo

Contattaci

Contatta ora

Descrizione del prodotto

AC Generator-Battery Hybrid Converter

Integrated Power Conversion System

The GREEF ENERGY multi-functional converter integrates AC-to-DC rectification for Permanent Magnet generators, battery charging, and DC-to-AC inversion in a single system. Featuring advanced energy management and dual LCD touchscreen interface, this converter provides stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), ensuring reliable power supply to connected loads. Configurable grid-tied operation enables seamless integration with both standalone and grid-connected power systems.

Technical Specifications

Generator Input

Rated Power: 100 kW

Voltage Range: 240-550 Vac

Optimal Voltage: 450 Vac

Max Current: 180 A

Battery System

Type: Lithium-ion

Voltage Range: 350-450 Vdc

Rated Voltage: 400 Vdc

Max Charge/Discharge: 250 A

Grid Output

Rated Power: 100 kW

Max Power: 120 kW

Voltage: 300-460 V

Frequency: 50/60 Hz

Performance & Protection

Parameter	Specification
Efficiency	Up to 95%
Power Factor	>0.99 (adjustable -1 to 1)
THD	<3% at rated power
Overload Capacity	1.2x rated power for 1 minute
Protection Level	IP54
Operating Temperature	-40°C to 60°C
Max Altitude	4,000 meters

System Features

AC-DC rectification, DC-DC buck boost, and DC-AC inversion topology
Energy Management System (EMS)
Dual LCD SMART touchscreen interface
Intelligent air cooling system
Communication: Ethernet, RS485, WiFi
Standby power consumption: <50 W

Applications

Renewable Energy Systems

Integration with PMSG wind turbines and hydro turbines for off-grid or hybrid power setups

Off-Grid & Backup Power

Central hub for remote locations, cabins, telecom stations with generator input, battery charging, and inverter control

Grid-Interactive Systems

Grid-tied operation for battery charging and potential grid feedback

Industrial & Commercial Power

Stable power supply under unbalanced loads with remote monitoring via WIFI/LAN and Modbus integration

Customization & Ordering

The GREEF ENERGY AC PCS On Grid Controller offers comprehensive customization options with detailed monitoring capabilities including generator speed, input/output parameters, and power generation statistics. CE certified and manufactured to highest standards.

Physical Dimensions

Height: 1500 mm
Width: 1500 mm
Depth: 1300 mm
Weight: ≤ 600 kg (excluding dump load)

Order Information

Parameter	Details
Minimum Order	1 set
Delivery Time	~25 working days
Payment Terms	T/T, Western Union, MoneyGram, L/C
Packaging	Foam and plywood cases
