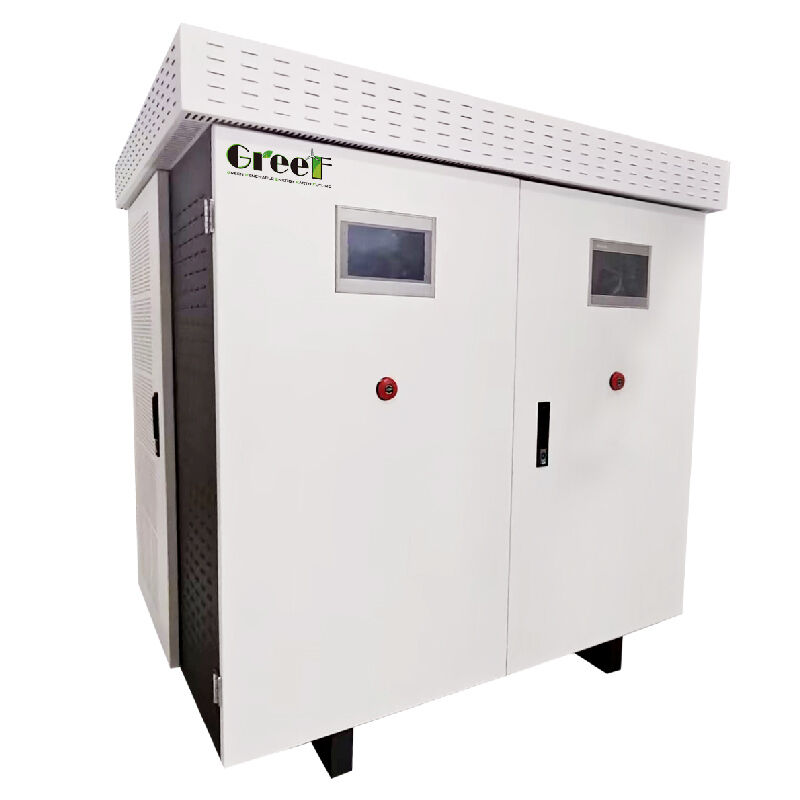

Name: 95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Casa. > prodotti > Sul regolatore di griglia >

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

95% Maximum Efficiency On Grid Controller

LCD Smart Touch Screen Energy Management Controller

Lithium-Ion Battery AC Generator-Battery Hybrid Converter

Marca:

Greef

Certificazione:

Model Number:

AC PCS

Contattaci

Chiedi un preventivo

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Dettagli del prodotto

Topologia:

Retificatore AC-DC, Boost buck DC-DC, Invertitore DC-AC.EMS

Efficienza massima(%):

95%

Tensione nominale (VAC):

≥ 320

Voltaggio nominale della batteria (Vcc):

400

Visualizza contenuto:

Velocità del generatore (giri/min), tensione in ingresso (V CC), corrente in ingresso (V CA), potenz

Corrente CA massima (A):

180

Tensione di griglia nominale (V):

400

Display:

schermo touch LCD intelligente

Termini di pagamento e di spedizione

Minimum Order Quantity

1Set

Prezzo

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Termini di pagamento

T/T, Western Union, MoneyGram, L/C

Supply Ability

PRODOTTI RELATIVI

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Ottieni il miglior prezzo

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Ottieni il miglior prezzo

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Ottieni il miglior prezzo

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Ottieni il miglior prezzo

Contattaci

Contatta ora

Descrizione del prodotto

AC Generator-Battery Hybrid Converter with IP54 Protection

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple essential power management functions into a single device. It performs AC to DC conversion for permanent magnet generators, efficient battery charging, and DC to AC inversion. The system includes a comprehensive energy management system for optimized performance.

Key Features

EMS Smart Energy Management System with multiple operating modes
Dual LCD smart touchscreen display for intuitive control
Generator power curve tracking technology
AC/DC dual backup power support
Advanced unbalanced load control technology
RS485 Modbus RTU communication protocol
Optional PWM dump load protection
Water gate motor control function
WiFi/LAN remote monitoring and control
Static Transfer Switch (STS) support

Technical Specifications

Parameter Category	Specifications
Rated Power	100 kW
Rated Voltage	≥ 320 Vac
Generator Voltage Range	240-550 Vac
Battery Type	Lithium-ion
Battery Voltage Range	350-450 Vdc
Rated Battery Voltage	400 Vdc
Grid Voltage Range	300-460 V
Grid Frequency	50/60 Hz
Current THD	< 3%
Power Factor	> 0.99 (adjustable -1 to 1)

Applications

Renewable Energy Systems: PMSG integration for wind and hydro turbines
Off-Grid & Backup Power: Remote sites, cabins, telecom stations
Grid-Interactive Systems: Grid charging and power export
Industrial & Commercial: Building management system integration
Specialized Control: Water gate motors and Static Transfer Switch

Customization Options

CE certified manufacturing
Ambient temperature range: -40°C to 60°C
Minimum order quantity: 1 set
Delivery time: 25 working days
Payment terms: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Each unit is packaged in custom foam-insulated boxes with durable outer casing. Includes controller, user manual, cables, and mounting accessories. Shipping within 2 business days with tracking and insurance options available.
