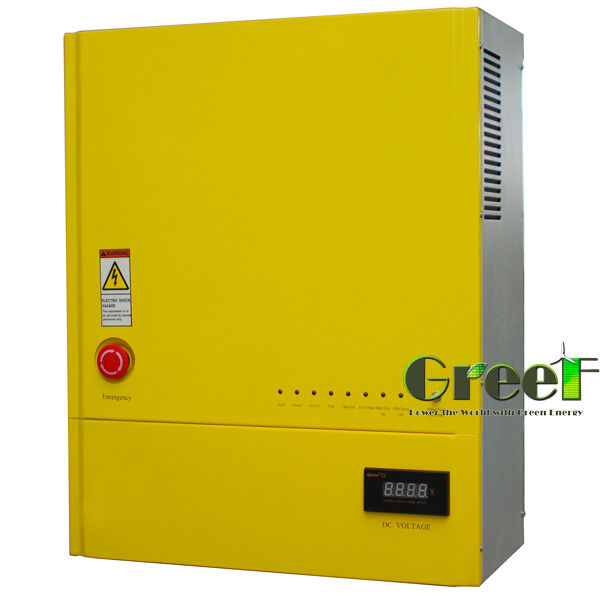

Pwm Constant Voltage 700dc Wind Controller Utilizing Wifi Communication Mode Providing Performance in Harsh Environments

Product Description:

The GREEF ENERGY multi-functional converter combines several essential functions into one advanced device. It provides AC-to-DC rectification specifically designed for Permanent Magnet (PM) generators, enabling efficient conversion of alternating current to direct current. Additionally, the converter supports battery charging, ensuring reliable energy storage and management.

Beyond rectification and charging, this versatile converter also offers DC-to-AC inversion capabilities. This means it can convert stored DC power back into AC power when needed, making it suitable for a wide range of applications. Integrated within the system is an energy management unit that optimizes power flow and enhances overall efficiency.

Equipped with a configurable dual LCD touchscreen interface, the GREEF ENERGY converter allows users to customize and monitor system settings with ease. The device utilizes cutting-edge converter technology to maintain stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), guaranteeing a consistent and uninterrupted power supply to connected loads.

Furthermore, the converter can be configured to operate in a grid-tied mode. This functionality enables seamless integration with the electrical grid, allowing the system to supply power directly to the grid and also perform grid charging when necessary. This flexibility makes it ideal for hybrid energy systems and smart grid applications.

Features:

The EMS smart energy management system offers multiple configurable operating modes, including off-grid, grid-tied, and grid charging. This flexibility ensures optimal performance in various energy scenarios.

Equipped with a double LCD smart touch screen display, the system provides intuitive and user-friendly interaction. Additionally, it features advanced generator power curve tracking technology to maximize efficiency.

For enhanced reliability, the system includes AC/DC dual backup capabilities for auxiliary power supply and incorporates control technology designed specifically for unbalanced loads.

Communication and integration are facilitated through the standard RS-485 Modbus RTU protocol, allowing seamless connectivity with other devices and systems.

Optional features further expand the system's functionality. These include a PMW dump load protection function against over voltage and over speed, water gate motor control, and support for WIFI/LAN remote monitoring and control via a dedicated application.

The EMS system also supports customized sensor control functions and the addition of a Static Transfer Switch (STS) for both grid-tie and off-grid applications, catering to specialized operational requirements.

Technical Parameters:

The ACPCS series includes multiple models ranging from 100 kW to 500 kW. The rated power for these models are as follows: 100 kW, 150 kW, 200 kW, 250 kW, 300 kW, and 500 kW. All generators operate at a rated voltage of at least 240 Vac, with an optimal rated voltage of 450 Vac. The start voltage of the system is equal to or greater than 180 Vac, and the AC voltage working range spans from 150 Vac to 550 Vac.

Regarding the maximum AC current, it varies depending on the model. For instance, the 100 kW model has a maximum AC current of 241 A, while the 500 kW model can reach up to 1203 A, with intermediate models having proportional current ratings reflecting their power capacity.

The system is designed to work with lithium-ion batteries. The battery voltage is customizable, with a rated voltage range between 400 Vdc and 900 Vdc to suit different applications. The maximum charging and discharging current also varies by model: from 250 A for the 100 kW model, up to 750 A for the 300 kW model, while some models like the 200 kW are rated up to 600 A, accommodating the power requirements of each configuration.

On the output side, the rated charging and discharging power ranges similarly from 100 kW up to 500 kW depending on the model. Maximum charging and discharging powers can exceed the rated levels, with peaks reaching as high as 360 kW and 600 kW for the 300 kW and 500 kW models respectively.

The rated charge and discharge currents vary from 144 A for the 100 kW model to 433 A and above for larger models. The maximum charge-discharge current also scales accordingly, with the highest being 866 A in the 500 kW unit. The systems support a rated grid voltage of 400 V, with an acceptable grid voltage range between 300 V and 460 V. Both 50 Hz and 60 Hz grid frequencies are compatible.

Performance characteristics include a total harmonic distortion rate of less than 3% at rated power, a power factor greater than 0.99, and an adjustable power factor range from -1 to 1. The system also features an overload capacity allowing continuous operation at 1.2 times the rated power for one minute, ensuring robust performance in demanding conditions.

Applications:

Customization:

Our Greef AC PCS On Grid Controller offers customized solutions for efficient and reliable monitoring of wind turbine speed and wind speed, ensuring optimal performance of your renewable energy system. With a wide range of rated power options from 100kW up to 1000kW, this grid tied controller is designed to meet diverse energy requirements.

Manufactured in China and certified with CE, the AC PCS model features an AC voltage working range of 150V to 550V and a permissible grid voltage range of 300-460V. Its intelligent air cooling method guarantees stable operation under varying environmental conditions. The output frequency supports both 50 Hz and 60 Hz standards, making it suitable for global applications.

We offer flexible minimum order quantities starting from just 1 set, with negotiable pricing to accommodate your project needs. Packaging is carefully handled with foam and plywood cases to ensure safe delivery within 25 working days. Payment terms include T/T, Western Union, MoneyGram, and L/C, providing convenience and security for your transactions.

Our supply ability is strong, allowing timely fulfillment of orders. Trust Greef’s On Grid Controller to integrate seamlessly as your grid tied controller, providing precise monitoring and control for your wind power systems.
